IVC Pumps Pvt. Ltd. Is A Manufacturer And
Exporter Of twin lobe roots blower

IVC Pumps Pvt. Ltd. Is A Manufacturer And Exporter Of twin lobe roots blower

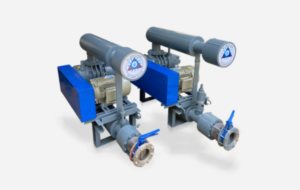

The twin lobe roots blower is a sophisticated and highly efficient positive displacement pump widely used across various industries for applications requiring high flow rates and moderate pressure differentials. Its design, characterized by two counter-rotating lobes or rotors, sets it apart as a reliable solution for tasks ranging from pneumatic conveying to wastewater treatment.

At the heart of the twin lobe roots blower lies its unique rotor configuration. Two precisely machined lobes, typically crafted from hardened steel or other durable materials, are mounted within a casing with minimal clearance between them. As these lobes rotate in opposite directions, they trap and transfer gas from the inlet to the outlet of the blower.

working principle

Twin Lobe Roots Blower available for flow rates from 60 M3 / Hr to 7,718 M3 / Hr to Working Pressure upto 1 Kg / Cm2. Roots Blower are Low Pressure High Volume Positive Displacement Machine. These Machine Operate on Differential Pressure and Constant Volume Characteristic.

Our Range Spans over 14 Air Cooled and 5 Water Cooled Models.

These Compressors are designed in such a way that the same can have vertical or horizontal air flow. Further, the Compressor with its standard accessories is being supplied as one compact unit which makes it very easy to install. It is also available as bare machine for replacement.

Blower are Suitable for Both Vacuum & Pressure Application. Pressures Note Developed inside the Blower by the demand of the System ( Application ). Differential Pressure, therefore, varies to meet the Load Condition and System Resistance.

Technical Specifications

MODEL	CAPACITY ( M3 / HR )	SPEED RPM	MAX. POWER ( HP )
IVBA - 10	60 - 233	1610 - 2850	15
IVBA - 12	81 - 389	1368 - 2850	20
IVBA - 14	142 - 542	1450 - 2850	30
IVBA - 16	177 - 800	1196 - 2732	40
IVBA - 19	318 - 987	1230 - 2203	50
IVBA - 22	523 - 1,527	1095 - 2035	75
IVBA - 26	782 - 2,182	1030 - 1825	120
IVBA - 30	879 - 2,478	716 - 1287	120
IVBA - 36	1,259 - 3,658	606 - 1088	180
IVBA - 42	2,197 - 5,822	606 - 1088	300
IVBA - 50	3,157 - 7,718	512 - 856	370

material of construction

Lobes or Rotors: The lobes are meticulously engineered to precise tolerances to ensure optimal performance and minimal wear over time. Their interlocking design ensures efficient gas transfer while minimizing internal leakage.

Casing: The casing or housing encloses the rotors and provides structural support. It is typically crafted from cast iron or other robust materials to withstand the forces generated during operation.

Bearings and Shaft: High-quality bearings support the rotor shafts, ensuring smooth rotation and minimizing frictional losses. These components are crucial for maintaining the blower’s efficiency and longevity.

Inlet and Outlet Ports: The blower features inlet and outlet ports for the entry and exit of gas. These ports are strategically located to optimize gas flow and minimize pressure losses.

features

Suitable for Vacuum & Pressure Application

Positive displacement machines with constant volume characteristics.

Oil Free Delivery

Easy Maintenance.

Rugged Construction For Heavy Duty Application.

High precision helical timing gears for reliability & long life

Split casing design facilitates easy maintenance and repair.

Low Specific Power Consumption

Heat resistant

Adjustable machine feet permit both horizontal & vertical flow of medium

Application

Distillation Coating
Degassing
Vacuum Impregnation
Vacuum Freeze-Drying
Crystallization
Refining of Oil Industries
Space Simulation
Polymerization
